Model:Welding Magnet
Ideal for holding work pieces in place whilst you weld. Strong powerful magnets. Frees hands for work. Use for welding, soldering, assembly, marking-off & pipe installation.
Multi-angle Magnetic Welding Fixtures are designed for fast and accurate holding of flat and round ferrous metal for welding and assembly jobs. Various angles available from 30¡ã, 45¡ã, 60¡ã, 75¡ã, 90¡ã, to 180¡ã
|
|
|
|
25 Lbs MiNi Welding Magnet |
25 Lbs/50 Lbs/75 Lbs Welding Magnet |
|
|
|
|
|
70 Lbs Welding Magnet with Switch |
70 Lbs Welding Magnet with Switch |

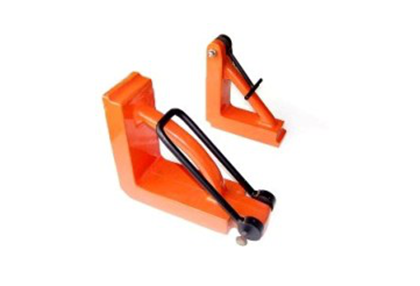

Heavy dute welding magnet
The Heavy-Duty Permanent Magnetic Welding Fixtures are equipped with two magnetic systems, and are designed for fast and accurate holding of flat and round ferrous metal for welding and assembly jobs. Each magnetic system is fixed in a nonmagnetic casing to minimize stray magnetic fields and reduce the possibility of attracting weld spatter.
|
ITEM NO. |
Dimension (mm) |
Weight (Kg) |
||
|
Length |
Width |
Height |
||
|
PIT.WMH.1 |
180 |
55 |
210 |
3.0 |
|
PIT.WMH.2 |
220 |
90 |
270 |
7.3 |
Magnetic Ground Clamp
The magnetic ground clamps will secure a ground connection, even on the most awkward surfaces. A springloaded stud assures constant electrical contact, while the powerful magnet holds the clamp securely to ferrous metal work surfaces. The magnet is protected from sparks and damage by a durable stainless steel housing.
|
ITEM NO. |
PRODUCT PICTURE |
DESCRIPTION |
| PIT.MGC.1 |
|
Magnetic Material:Ceramic |
|
Pot Size:3.46"OD * 0.71"H |
||
|
Surface:Cr Coating |
||
|
Pull Force:105 Lbs |
||
| PIT.MGC.2 |
|
Magnetic Material:Ceramic |
|
Pot Size:3.46"OD * 0.71"H |
||
|
Surface:Cr Coating |
||
|
Pull Force:105 Lbs |
Other Size can be supplied on customer request.
