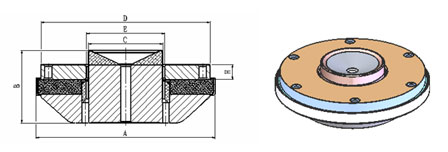

Item No. |
T steel |
Magnet |
Washer |
Air Gap |
Magnetic Flux |
|
(A×B-C) |
D×E×H |
(mm) |
(GS) |
||
|
SD05-01 |
ø123×50-ø44 |
NdFeB |
ø114×ø46.6×10 |
|
18000 |
|
SD05-02 |
ø123×50.25-ø51 |
NdFeB |
ø116×ø53.6×10 |
|
18000 |
|
SD05-03 |
ø148×52.25-ø62.9 |
NdFeB |
ø141×ø65.6×12.5 |
|
21000 |
|
SD05-03A |
ø141×60.25-ø62.90 |
NdFeB |
ø141×ø66.1×15 |
|
21000 |
|
SD05-03B |
ø141×55-ø62.90 |
NdFeB |
ø141×ø66.1×18 |
|
21000 |
|
SD05-03C |
ø141×52-ø62.90 |
NdFeB |
ø141×ø66.1×15 |
|
16500 |
|
SD05-03D |
ø141×54-ø62.90 |
NdFeB |
ø141×ø66.1×15 |
|
16500 |
|
SD05-03E |
ø141×50-ø62.4 |
NdFeB |
ø141×ø66.1×15 |
|
16500 |
|
SD05-03E1 |
ø141×50 |
NdFeB |
ø141×ø66.1×15 |
|
16500 |
|
SD05-03F |
ø141×48-ø62.4 |
NdFeB |
ø141×ø66.1×15 |
|
16500 |
|
SD05-03G |
ø141×46-ø62.4 |
NdFeB |
ø145×ø66.1×15 |
|
16500 |
|
SD05-03H |
ø141×46-ø62.4 |
NdFeB |
ø145×ø66.1×15 |
|
16500 |
|
SD05-04 |
ø141×50-M6 |
NdFeB |
ø141×ø66×15 |
|
|
|
SD05-04A |
ø141×51-M6 |
NdFeB |
ø141×ø66×15 |
|
|
