Item No. |
U YOKE |
Magnet |
Washer |
Air Gap |
Magnetic Flux |
|

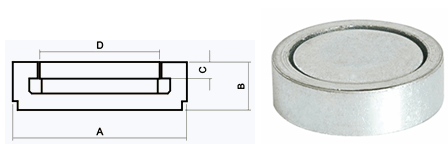

(ΦAXB) |
(DXC) |
(mm) |
(GS) |
||
|
SD02-25 |
37X10.2 |
NdFeB |
Φ24.92X3.5 |
0.84 |
|
|
SD02-25A |
35X7.6 |
NdFeB |
Φ24.95X2 |
0.775 |
|
|
SD02-25B |
37X8.7 |
NdFeB |
Φ24.92X2 |
0.84 |
|
|
SD02-25C |
40X15 |
NdFeB |
Φ24.95X4 |
1 |
8500 |
|
SD02-75 |
85.2X24 |
NdFeB |
Φ74.94XΦ33X5 |
1.62 |
|
|
SD02-75A |
85.2X28 |
NdFeB |
Φ74.94XΦ33X6 |
1.62 |
|
Note: 1.The surface treatings are zinc coated.
2.The Oper.Temp. are 100 ℃.
3.Customer designs are acceptable.
